TITANIUM MESH CARTRIDGE
Feature

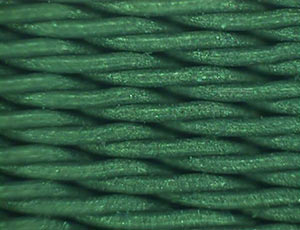

Titanium 500 mesh （Twiled Dutch Weave Wire Cloth）
●Corrosion resistance，Chemical resistance
Titanium is excellent for corrosion resistance, it is suitable for filtration of sea water which can not be handled with stainless steel, for highly corrosive chemicals, liquid filtration such as solvents.
●Large flow rate, low pressure loss
Filter media can take a wide filtration area by pleating process and is ideal for high flow rate liquid filtration.
●Pressure resistance
Filter media is a two-layer structure and is suitable for liquid filtration with excellent pressure resistance and high viscosity.
●Heat-resistance
Heatproof temperature: +300℃
●Reuse
It is economical because it can be washed and reused.
●Configuration
Compatible common products applicable (OD φ50 ～φ70 mm, Height 250, 500, 750 mm), Can be upgraded to general filtration equipment.
Specification
Filter composition
Media & Support： titanium, End Plate： Titanium, Other： Titanium
Filtration accuracy (Nominal)
20, 30, 100, 150, 350μ
Filtration area (㎡)
| Nominal Length (in) | 10 | 20 | 30 |
|---|---|---|---|
| Filtration area (㎡) | 0.15 | 0.30 | 0.45 |
Pressure resistance
Forward Flow: 0.86 MPa, Reverse Flow: 0.07 Mpa
Structure
Mounting structure
Ｈ type（Flat gasket type）
Ｗ type（222O‐ring type）
F type（226O‐ring type）
Outline drawing

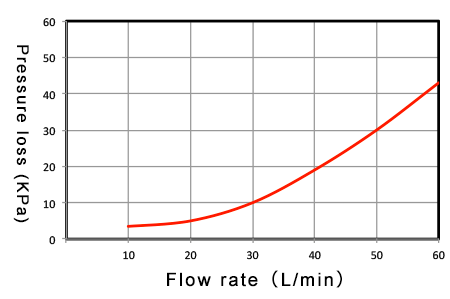

Flow characteristic
-
Water
※Including housing resistance
〈Conditions〉
（1）10 inch cartridge use
（2）Piping ： 1 inch housing use
（3）water temperature ： 20℃
Model
Model：TJMP–––
Please select and show model number.
| Endcap Configuration | |
|---|---|
| Length (Excluding gaskets) |
|
| Grade (Nominal) |
|
| Gasket Materials |
